Available in 2 heights
Churchill
Share this product
Customise Now
Additional information

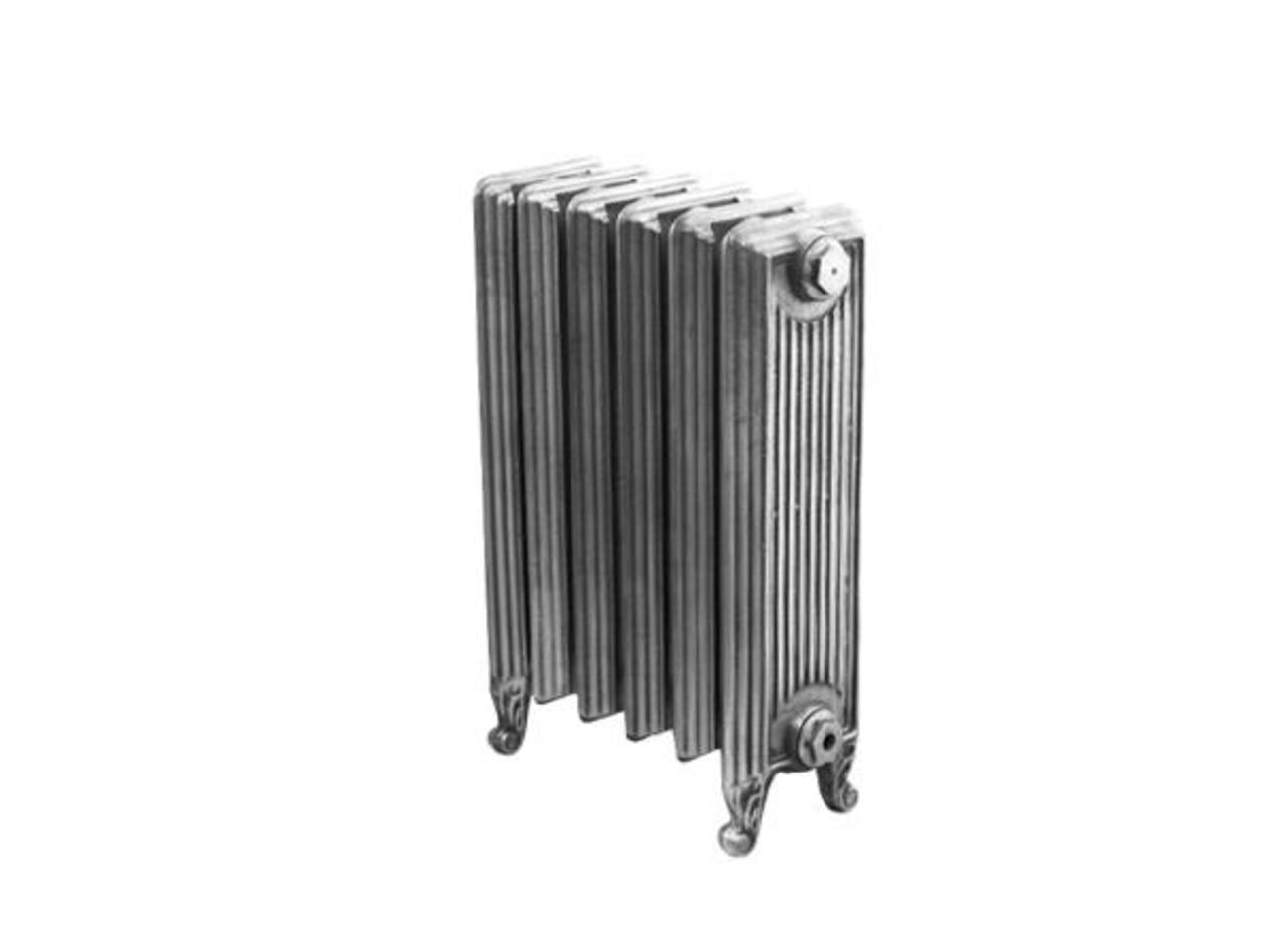

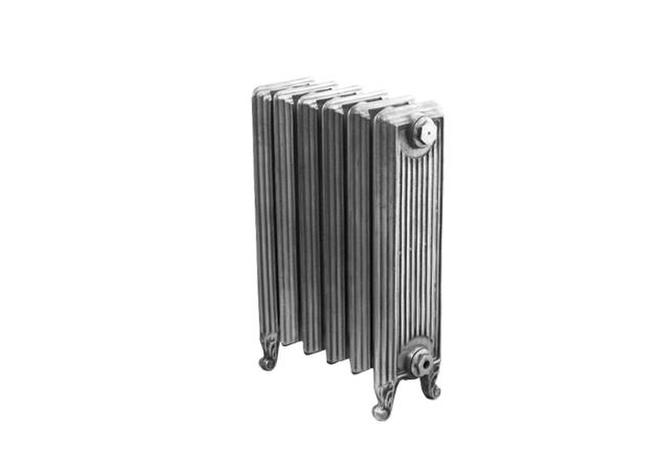

Available in 2 heights - this radiator dates from the 1880s and the style was originally used in Government Buildings.
Featuring a superb BTU output per section, this radiator is ideally suited for heating larger rooms.

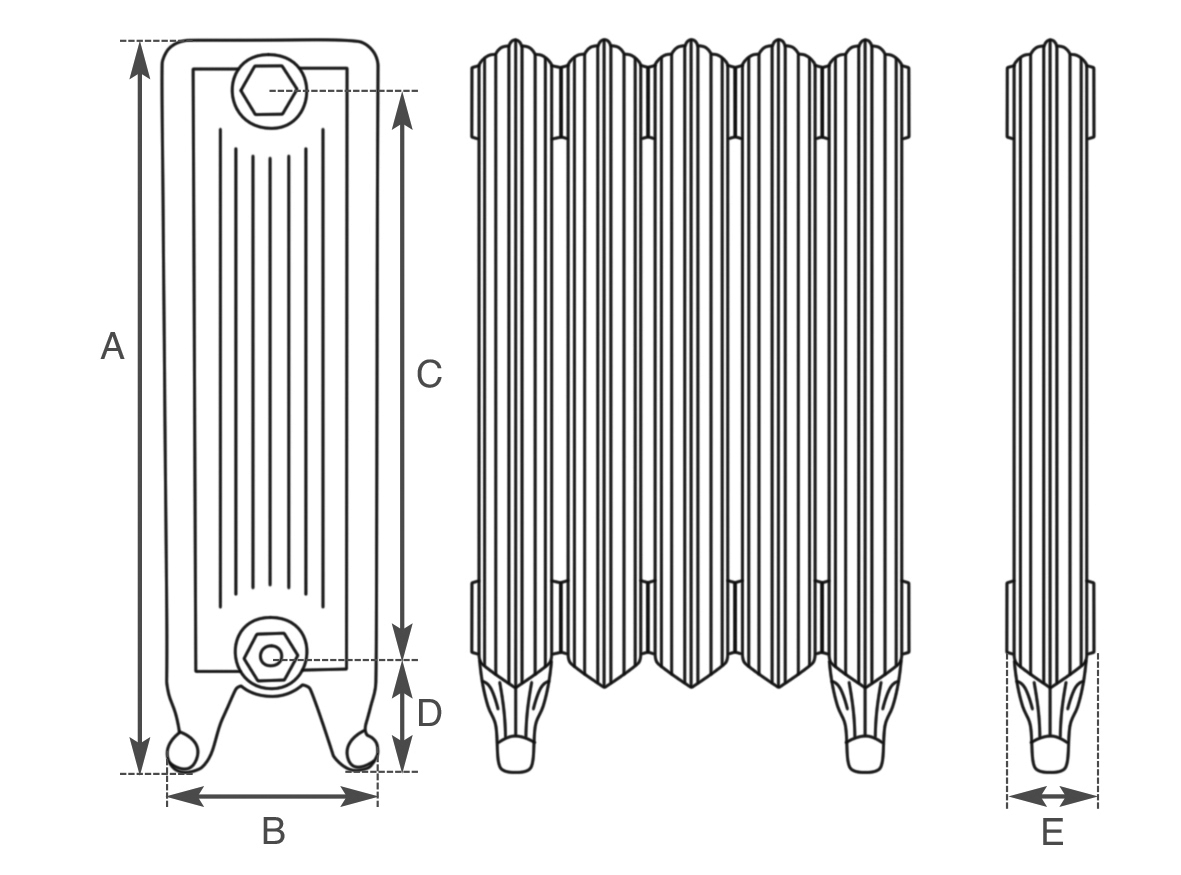

Dimensions reference table
| Code | Column Qty |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
Delta 50 | Delta 60 | Weight (KG) | |||
| BTUs | Watts | BTUs | Watts | Empty | Filled | ||||||||
| LD080 | 1 | 670 | 195 | 500 | 115 | 76 | n/a | 431 | 126 | 532 | 156 | 14.9 | 17.3 |
| LD082 | 1 | 975 | 195 | 790 | 140 | 80 | n/a | 591 | 173 | 755 | 221 | 24.6 | 18.5 |
- As each radiator is hand built measurements given are for guidance only and should not be used for the location of pipe work
- Neither Nostalgia and New or our manufacturer accepts any responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.
- Output figures are based on Delta 60 calculations.
- We endeavour to ensure that colours are as accurate as possible.
- All of our cast iron radiators are brand new and fully tested to BS EN442-1 and BS EN442-2, are BSRIA compliant and have a manufacturer’s lifetime guarantee.
